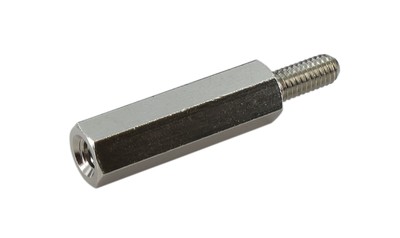

DISTINEX Messing
Distanzhalter mit Innen- / AussengewindeTechnische Angaben:
Material: | Messing (CuZn39Pb3) |
Gewindegrössen: | M2, M2.5, M3, M4, M5 (D1 + D2) |
Schlüsselweiten: | 4, 5, 5.5, 7, 8 (SW) |
Längentoleranz: | gem. ISO 2768-1M (mittel) |
RoHS konform: | gem. 2011/65/EU Anhang III, Ausnahmeregelung 6c |
Legende:
D1, D2: | Gewinde |
L, P1, P2, SW: | Massangaben (mm) |
Auf Anfrage Fertigung nach Spezifikation:
Spezialausführungen in anderen Dimensionen und weiteren Materialien sind auf Anfrage über unser Konfigurationsformular erhältlich.
Dokumente
Preis in CHF exkl. Mwst.
Artikel | Gewinde | SW | L | P1 | P2 | Anzahl | Verfügbar | Einzelpreis | Anfrage |
---|---|---|---|---|---|---|---|---|---|
DISTINEX2040M-05 | M2 | 4.0 | 5.0 | 6.0 | 4.0 |
|
0.28 | ||
DISTINEX2040M-06 | M2 | 4.0 | 6.0 | 6.0 | 3.0 |
|
0.29 | ||
DISTINEX2040M-07 | M2 | 4.0 | 7.0 | 6.0 | 3.0 |
|
0.30 | ||
DISTINEX2040M-08 | M2 | 4.0 | 8.0 | 6.0 | 6.0 |
|
0.30 | ||
DISTINEX2040M-10 | M2 | 4.0 | 10.0 | 6.0 | 6.0 |
|
0.33 | ||
DISTINEX2040M-12 | M2 | 4.0 | 12.0 | 6.0 | 6.0 |
|
0.34 | ||
DISTINEX2040M-15 | M2 | 4.0 | 15.0 | 6.0 | 6.0 |
|
0.39 | ||
DISTINEX2040M-18 | M2 | 4.0 | 18.0 | 6.0 | 6.0 |
|
0.46 | ||
DISTINEX2040M-20 | M2 | 4.0 | 20.0 | 6.0 | 6.0 |
|
0.52 | ||
DISTINEX2040M-25 | M2 | 4.0 | 25.0 | 6.0 | 6.0 |
|
0.68 | ||
DISTINEX2040M-30 | M2 | 4.0 | 30.0 | 6.0 | 6.0 |
|
0.82 | ||
DISTINEX2550M-03 | M2.5 | 5.0 | 3.0 | 6.0 | 3.0 |
|
k.A. | ||
DISTINEX2550M-04 | M2.5 | 5.0 | 4.0 | 6.0 | 3.0 |
|
k.A. | ||
DISTINEX2550M-05 | M2.5 | 5.0 | 5.0 | 6.0 | 4.0 |
|
0.27 | ||
DISTINEX2550M-06 | M2.5 | 5.0 | 6.0 | 6.0 | 3.0 |
|
0.28 | ||
DISTINEX2550M-07 | M2.5 | 5.0 | 7.0 | 6.0 | 3.0 |
|
0.29 | ||
DISTINEX2550M-08 | M2.5 | 5.0 | 8.0 | 6.0 | 6.0 |
|
0.30 | ||
DISTINEX2550M-09 | M2.5 | 5.0 | 9.0 | 6.0 | 5.0 |
|
0.32 | ||
DISTINEX2550M-10 | M2.5 | 5.0 | 10.0 | 6.0 | 6.0 |
|
0.33 | ||
DISTINEX2550M-11 | M2.5 | 5.0 | 11.0 | 6.0 | 6.0 |
|
0.36 |
