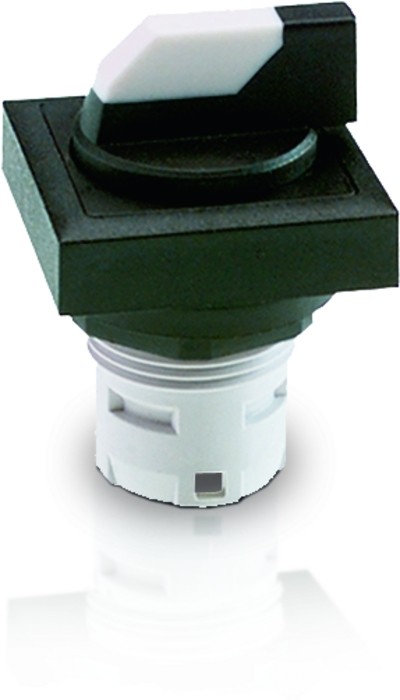

RAFIX 16
Selector switch, square, stackableFeatures:
- Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
- IP65 (DIN EN 60529) frontside
- RoHS & REACH compliant
| Overall height: | 17.1mm | |
| Mounting depth: | 44.7mm | |
| Mounting hole: | 16.2mm | |
| Button grid: | 25 x 25mm | |
| Mechanical construction: | ||
| Fixation: | thread ring | |
| Contact function: | depending on the switching element | |
| Contact material: | depending on the switching element | |
| Mechanical parameters: | ||
| Actuating moment: | max. 1.3 Nm | |
| Other information: | ||
| Operating temperature: | -25 to +70°C | |
| Operating temperature with LED: | max. +55°C | |
| Storage temperature: | -40 to +85°C |
Manufacturer: RAFI
