Buccaneer 900 series
up to 32A, 600V, 2, 3, 4, 5 and 7 pins, IP68Bulgin's most powerful edge connector in the Buccaneer range with up to 32A, 600V AC/DC. The 900 Series is sealed to IP68 and IP69K and features a secure screw lock for robust high voltage connections. This Buccaneer series is well suited for applications requiring dust and waterproof connections for single or three phase power distribution. With UL, CSA and VDE approvals, these rugged cable connectors are ideal for a variety of applications in harsh environments such as sewerage and water works, construction sites, outdoor lighting and industrial machinery, pumps and motors.
Technical data:
Poles: | 2, 3, 4, 5 or 7 |
Voltage: | 430 or 600V |
Current: | 32A |
Connection type: | screws |
Outer Ø: | 46, 50 or 58mm |
Shielding: | no |
IP protection class: | IP68 to IP69K |
Manufacturer: Bulgin
Other types and numbers of poles are available on request and can be found in the data sheet.
Documents
Price in CHF excl. vat.

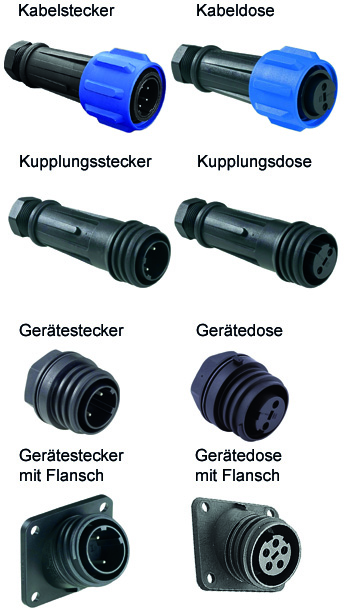

Part | Type | Poles | Voltage | Amperage | Quantity | Available | Price | Enquiry |
---|---|---|---|---|---|---|---|---|
PX0911/02/P | Cable plug | 2 | 600V | 32A |
|
34.73 | ||
PX0911/02/S | Cable socket | 2 | 600V | 32A |
|
30.01 | ||
PX0911/03/P | Cable plug | 3 | 600V | 32A |
|
41.68 | ||
PX0911/03/S | Cable socket | 3 | 600V | 32A |
|
39.93 | ||
PX0911/04/P | Cable plug | 4 | 600V | 32A |
|
42.66 | ||
PX0911/05/P | Cable plug | 5 | 600V | 32A |
|
47.85 | ||
PX0911/05/S | Cable socket | 5 | 600V | 32A |
|
45.73 | ||
PX0911/07/P | Cable plug | 7 | 430V | 32A |
|
57.87 | ||
PX0911/07/S | Cable socket | 7 | 430V | 32A |
|
65.45 | ||
PX0921/02/P | Coupling plug | 2 | 600V | 32A |
|
34.40 | ||
PX0921/02/S | Coupling socket | 2 | 600V | 32A |
|
23.53 | ||
PX0921/03/P | Coupling plug | 3 | 600V | 32A |
|
25.16 | ||
PX0921/03/S | Coupling socket | 3 | 600V | 32A |
|
29.45 | ||
PX0921/05/P | Coupling plug | 5 | 600V | 32A |
|
35.77 | ||
PX0921/05/S | Coupling socket | 5 | 600V | 32A |
|
35.30 | ||
PX0921/07/P | Coupling plug | 7 | 430V | 32A |
|
70.36 | ||
PX0921/07/S | Coupling socket | 7 | 430V | 32A |
|
55.34 | ||
PX0931/02/P | Device plug | 2 | 600V | 32A |
|
22.31 | ||
PX0931/02/S | Device socket | 2 | 600V | 32A |
|
24.65 | ||
PX0931/03/P | Device plug | 3 | 600V | 32A |
|
28.88 |
