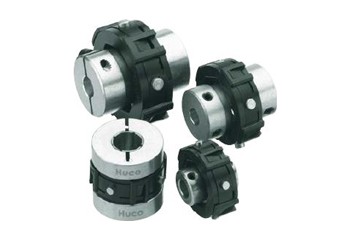

Uni-Lat (Universal Lateral)
made of metal alloysUni Lats are often used for pulse encoder drives.
Features:
- Free of play up to 108 Umdrehungen
- Can compensate for large misalignments
- Lightly damping properties
- Bend-free mechanics (non-pergressive bearing load)
- Non-magnetic (with special screws)
- Electrically insulating
- Low moment of inertia
- Disc made of Acetal (black)
Rotation per min: | up to 3'000 |
Adjustment Compensation: | axial, radial and angular |
Power transmission: | max. 12 Nm |
Bore sizes: | 3 to 22mm |
Operating temperature: | -20 to +60°C |
Electrically insulating: | yes |
Fixation: | Clamp or screw mounting |
The couplings are available on request and can be found in the data sheets.
Manufacturer: Huco
