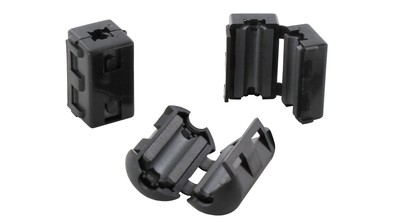

Folding ferrites
with snap lockFeatures:
- Easy attachment of the split ferrite core to installed cables or cables with plug-in connectors
- Thanks to the patented snap closure, the core can also be easily opened again - making it ideal for laboratory and test purposes
- Helpful for high frequency interference between 1 and 300MHz to meet FCC, VCCI and CE requirements
| Enclosure material: | Polyamide 6, UL94V-0 |
| Colour: | black (white or grau on request) |
All dimensions in millimetres (mm)
Imp. 1: Impedance in Ohm @25MHz
Imp. 2: Impedance in Ohm @100MHz
Documents
Price in CHF excl. vat.
| Part | Type | A | B | C | D | E | Cable-Ø | Imp. 1 | Imp. 2 | Quantity | Available | Price | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 03 21 | 1 | 15.0 | 14.0 | 5.2 | 23.0 | 5 | 90 | 200 |
|
2.65 | |||
| 600 03 24 | 1 | 20.5 | 20.0 | 6.5 | 33.0 | 7 | 180 | 275 |
|
3.25 | |||
| 600 03 27 | 1 | 25.5 | 23.5 | 10.0 | 33.0 | 10 | 130 | 240 |
|
3.90 | |||
| 600 03 28 | 1 | 31.5 | 30.0 | 13.0 | 33.0 | 13 | 150 | 250 |
|
4.20 | |||
| 600 03 67 | 2 | 15.5 | 14.0 | 7.0 | 18.0 | 22.0 | 7 | 55 | 109 |
|
3.80 | ||
| 600 03 69 | 2 | 20.5 | 19.5 | 9.0 | 31.5 | 35.5 | 9 | 80 | 130 |
|
4.20 | ||
| 600 03 73 | 2 | 31.5 | 30.5 | 13.0 | 34.0 | 39.5 | 13 | 43 | 205 |
|
4.80 | ||
| 600 03 85 | 3 | 13.0 | 11.8 | 5.0 | 25.5 | 2.5 | 5 | 105 | 135 |
|
3.20 | ||
| 600 03 89 | 3 | 19.5 | 18.0 | 9.0 | 35.0 | 5.5 | 9 | 80 | 130 |
|
3.80 | ||
| 600 03 22 | 4 | 15.0 | 15.0 | 4.0 | 25.2 | 4 | 67 | 151 |
|
2.70 | |||
| 600 03 23 | 4 | 16.5 | 16.5 | 5.2 | 29.5 | 5 | 98 | 160 |
|
2.90 | |||
| 600 03 26 | 4 | 20.6 | 20.0 | 9.5 | 42.0 | 9.5 | 9 | 140 | 215 |
|
3.70 | ||
| 600 03 25 | 4 | 21.0 | 21.0 | 7.5 | 39.0 | 8 | 125 | 245 |
|
3.20 |
