DISTCLIP PA
PCB spacerTechnical data:
| Material: | Polyamide (PA) |
| Colour: | black |
| Thread: | M3 or M4 |
| Wrench widths: | 6 or 8 |
| Operating temperature: | to ca. 110°C |
| Mounting: | snap lock |

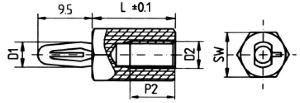

Legend:
| D2: | Thread |
| D1, L, P1, P2, SW: | Dimensions (mm) |
Documents
Price in CHF excl. vat.
| Part | D1 | D2 | SW | L | P2 |
Front panel thickness (mm) |
Quantity | Available | Price | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| DISTCLIP3060-05C | 4.0 | M3 | 6.0 | 5.0 | 2.5 | 1.8 |
|
0.33 | ||
| DISTCLIP3060-06B | 4.0 | M3 | 6.0 | 6.0 | 3.0 | 2.1 |
|
0.38 | ||
| DISTCLIP3060-06C | 4.0 | M3 | 6.0 | 6.0 | 3.0 | 1.8 |
|
0.39 | ||
| DISTCLIP3060-07B | 4.0 | M3 | 6.0 | 7.0 | 3.5 | 2.1 |
|
0.38 | ||
| DISTCLIP3060-07C | 4.0 | M3 | 6.0 | 7.0 | 3.5 | 1.8 |
|
0.37 | ||
| DISTCLIP3060-08B | 4.0 | M3 | 6.0 | 8.0 | 4.0 | 2.1 |
|
0.38 | ||
| DISTCLIP3060-08C | 4.0 | M3 | 6.0 | 8.0 | 4.0 | 1.8 |
|
0.37 | ||
| DISTCLIP3060-09B | 4.0 | M3 | 6.0 | 9.0 | 4.5 | 2.1 |
|
0.38 | ||
| DISTCLIP3060-09C | 4.0 | M3 | 6.0 | 9.0 | 4.5 | 1.8 |
|
0.37 | ||
| DISTCLIP3060-10B | 4.0 | M3 | 6.0 | 10.0 | 5.0 | 2.1 |
|
0.38 | ||
| DISTCLIP3060-10C | 4.0 | M3 | 6.0 | 10.0 | 5.0 | 1.8 |
|
0.37 | ||
| DISTCLIP3060-11B | 4.0 | M3 | 6.0 | 11.0 | 5.5 | 2.1 |
|
0.40 | ||
| DISTCLIP3060-11C | 4.0 | M3 | 6.0 | 11.0 | 5.5 | 1.8 |
|
0.39 | ||
| DISTCLIP3060-12B | 4.0 | M3 | 6.0 | 12.0 | 6.0 | 2.1 |
|
0.40 | ||
| DISTCLIP3060-12C | 4.0 | M3 | 6.0 | 12.0 | 6.0 | 1.8 |
|
0.39 | ||
| DISTCLIP3060-13B | 4.0 | M3 | 6.0 | 13.0 | 6.5 | 2.1 |
|
0.40 | ||
| DISTCLIP3060-13C | 4.0 | M3 | 6.0 | 13.0 | 6.5 | 1.8 |
|
0.39 | ||
| DISTCLIP3060-14B | 4.0 | M3 | 6.0 | 14.0 | 7.0 | 2.1 |
|
0.40 | ||
| DISTCLIP3060-14C | 4.0 | M3 | 6.0 | 14.0 | 7.0 | 1.8 |
|
0.39 | ||
| DISTCLIP3060-15B | 4.0 | M3 | 6.0 | 15.0 | 7.5 | 2.1 |
|
0.40 |
