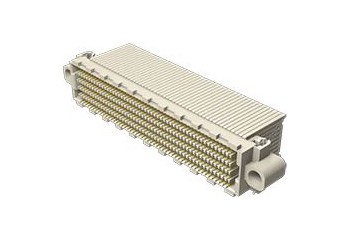

SEAF-RA series
SEARAY™ High-Speed right-angled Open-Pin-Field Array SocketSEARAY™ is a right-angled open-pin-field array 1.27mm (0.050") pitch connector. Available with up to 500 pins, SEARAY™ maximizes design and routing flexibility for single-ended or differential pair configurations, and for power, signal, or ground. SEARAY™ uses the Edge Rate® contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance.
Features:
- 1.27mm (0.050") pitch
- High-density open-pin-field array
- Right-angle design
- Rugged Edge Rate® contact
- Lower insertion/withdrawal forces
- Solder charge termination
- Guide post, latching post options
