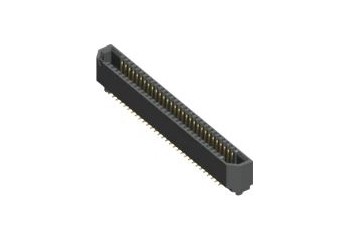

ERF6 series
Edge Rate® Robuste Highspeed-BuchseThe ERF6 is a board-mounted socket designed for use in high-speed systems. The ERF6 uses the Edge Rate® contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance. The ERF6 mates with ERM6 board-mounted headers.
Featrures:
- 0.635mm (0.025") pitch
- Slim 2.5mm body width
- 2-row design; 10 - 60 positions per row (20 - 120 total positions)
- Edge Rate® contact system optimized for signal integrity performance
- Supports 56 Gbps PAM4 (28 Gbps NRZ) applications
- 5mm stack height
- J lead for standard processing
- Additional stack heights in development
