CM100, 101 & 102 series

To the inquiry list

Cable tie socket with clip made of PA66

Technical data:
Material:Polyamide (PA66)
Colour:natural
Flammability:V2 (UL 94)
Temperature range: -35 to +85°C
RoHS compliant

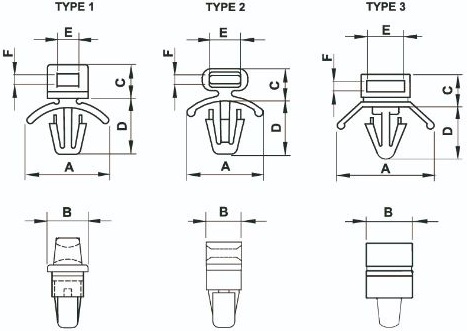

Legend:
A, B, C, D, E, F: Dimensions (mm)


Documents
Price in CHF excl. vat.
Part Type A B C D E F Ø Thickness Quantity Available Price Enquiry
CM100-048-PAN-038 1 14.3 7.1 7.5 8.2 3.8 2.1 4.8 0.8 - 2.0
0.07
CM101-064-PAN-064 2 15.6 7.2 6.8 10.7 6.4 1.7 6.4 1.2 - 2.8
0.09
CM102-062-PAN-082 3 21.0 10.0 7.1 11.2 8.2 2.4 6.2 0.8 - 3.2
0.07
