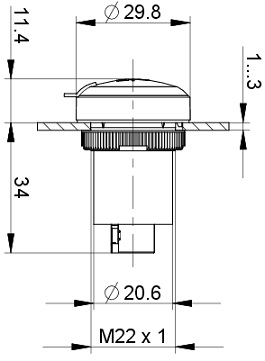

RAMO 22 F (RJ45)

To the inquiry list

RJ45 feed-through, frontring black

Cable entry for front panels. Front RJ45 and rear with corresponding socket in the housing.

Features:
  • IP65 according to DIN EN 60529
  • Port protected with sealing cap
  • Completely coordinated design
  • Simple plug & play connection
Mechanical parameters:
Connection on front side: RJ45 CAT 5
Connection on back side:RJ45 CAT 5
  
Other information:  
Operating temperature:-25 to +70°C
Lifetime:750 cycles
Environmental resistance: IEC 60068-2, -14, -30, -78

Manufacturer: RAFI


Further technical details can be found in the product brochure.

Documents
Price in CHF excl. vat.
Part Type Quantity Available Price Enquiry
1.10.099.201/0011 RJ45 feed through
31.10

Bracket

With the RAMO 22 EDGE mounting bracket, the switches of the RAMO 22 series can be mounted on profiles and without additional insulation. This offers freedom in assembly and new possibilities for placing the components away from the central machine or unit control panel.

Mounting hole 22.3mm
Grid min. 40mm
Lateral force strength max. 100 N

Price in CHF excl. vat.
Image Part Type Quantity Available Price Enquiry
5.04.013.041/0000 Mounting bracket
3.62
