RAFIX 22 FSR

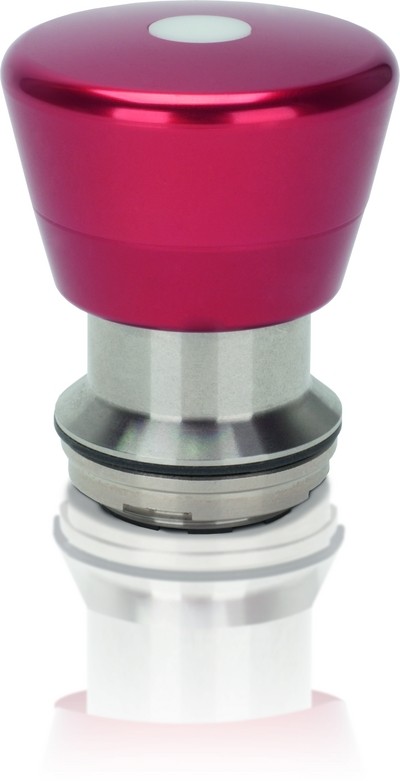

Emergency stop button, metall mushroomThe emergency stop pushbuttons comply with IEC 60 947 and VDE 0113 Part 1. They are protected against unauthorised actuation by a positively guided mechanical movement sequence in accordance with DIN EN ISO 13850. To protect against accidental actuation, a pressure point must be overcome and the pushbutton engages in the pressed position.
You will find the corresponding switching elements further down on this page.
Features:
- Collar shape round
- Mushroom shape conical
- Mushroom colour red
- IP protection class IP65 according to DIN EN 60529
- RoHS compliant
| Mushroom diameter: | 38,9mm |
| Overall height: | 41,1mm |
| Mounting hole: | 22,3mm |
| Button grid: | 40 x 40mm |
Manufacturer: RAFI
Documents
Switch elements QC (Quick Connect) Universal
| General: | |
| Illuminant optional: | LED |
| Mechanical construction: | |
| Contact material: | gold or silver |
| Fixation: | latching in actuating element |
| Contact system: | self-cleaning bridge contact |
| Connections: | plug-in connection 2,8 x 0,8mm |
Switch elements PCB Universal
| General: | |
| Illuminant optional: | LED |
| Mechanical construction: | |
| Contact material: | gold or silver |
| Diameter: | 17,3mm |
| Recommended grid: | 30mm |
| Mounting depth: | 9,2mm |
Price in CHF excl. vat.
| Image | Part | Contact assembly | Contact material | Light guide | Quantity | Available | Price | Enquiry |
|---|---|---|---|---|---|---|---|---|
|
1.20.126.403/0000 | 1 O + 1 C | gold | no |
|
7.67 | ||
|
1.20.126.404/0000 | 2 O | gold | no |
|
7.67 | ||
|
1.20.126.414/0000 | 2 O + 1 Signal contact | gold | no |
|
13.57 | ||
|
1.20.126.401/9000 | 1 O | gold | yes |
|
5.00 | ||
|
1.20.126.404/9000 | 2 O | gold | yes |
|
7.81 | ||
|
1.20.126.601/0000 | 1 O | silver | no |
|
4.84 | ||
|
1.20.126.604/0000 | 2 O | silver | no |
|
7.55 | ||
|
1.20.126.604/9000 | 2 O | silver | yes |
|
7.79 |
