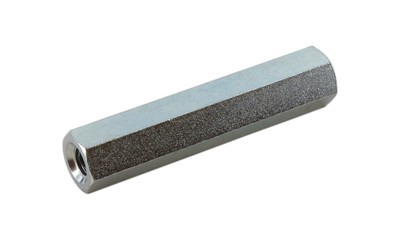

DISTIN steel
spacer with internal threadTechnical data:
| Material: | steel (5SMnPb36k) |
| Thread sizes: | M2.5, M3, M4, M5 (D1 + D2) |
| Hexagon sizes: | 5, 7, 8 (SW) |
| Length tolerances: | according to ISO 2768-1M (medium) |
| RoHS compliant: | according to 2011/65/EU appendix III, derogation 6c |
Legend:
| D1, D2: | Thread |
| L, P1, P2, SW: | Dimensions (mm) |
Manufacturing to specification on request:
Special versions in other dimensions and other materials are available on request via our configuration form.
Documents
Price in CHF excl. vat.
| Part | Thread | SW | L | P1 | P2 | Quantity | Available | Price | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| DISTIN3050S-05 | M3 | 5.0 | 5.0 | 5.0 | 5.0 |
|
0.20 | ||
| DISTIN3050S-08 | M3 | 5.0 | 8.0 | 8.0 | 8.0 |
|
0.22 | ||
| DISTIN3050S-10 | M3 | 5.0 | 10.0 | 10.0 | 10.0 |
|
|||
| DISTIN3050S-11 | M3 | 5.0 | 11.0 | 10.0 | 10.0 |
|
0.25 | ||
| DISTIN3050S-12 | M3 | 5.0 | 12.0 | 12.0 | 12.0 |
|
0.25 | ||
| DISTIN3050S-15 | M3 | 5.0 | 15.0 | 15.0 | 15.0 |
|
|||
| DISTIN3050S-18 | M3 | 5.0 | 18.0 | 18.0 | 18.0 |
|
|||
| DISTIN3050S-20 | M3 | 5.0 | 20.0 | 20.0 | 20.0 |
|
0.34 | ||
| DISTIN3050S-25 | M3 | 5.0 | 25.0 | 10.0 | 10.0 |
|
|||
| DISTIN3050S-30 | M3 | 5.0 | 30.0 | 10.0 | 10.0 |
|
0.35 | ||
| DISTIN3050S-35 | M3 | 5.0 | 35.0 | 10.0 | 10.0 |
|
0.37 | ||
| DISTIN3050S-40 | M3 | 5.0 | 40.0 | 10.0 | 10.0 |
|
|||
| DISTIN3050S-45 | M3 | 5.0 | 45.0 | 10.0 | 10.0 |
|
0.41 | ||
| DISTIN3050S-50 | M3 | 5.0 | 50.0 | 10.0 | 10.0 |
|
|||
| DISTIN3050S-60 | M3 | 5.0 | 60.0 | 10.0 | 10.0 |
|
0.75 | ||
| DISTIN3060S-05 | M3 | 6.0 | 5.0 | 5.0 | 5.0 |
|
|||
| DISTIN3060S-08 | M3 | 6.0 | 8.0 | 8.0 | 8.0 |
|
|||
| DISTIN3060S-10 | M3 | 6.0 | 10.0 | 10.0 | 10.0 |
|
|||
| DISTIN3060S-12 | M3 | 6.0 | 12.0 | 12.0 | 12.0 |
|
|||
| DISTIN3060S-15 | M3 | 6.0 | 15.0 | 15.0 | 15.0 |
|
