TD-200

To the inquiry list

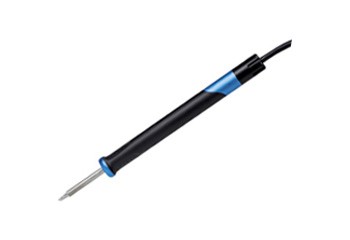

AccuDrive® Soldering iron kit

The new TD-200 AccuDrive® soldering iron with Tip Heater cartridge features a slim and ergonomic aluminium handle designed to stay cool and comfortable during extended or continuous soldering operations. The slim and lightweight handle significantly reduces operator strain and fatigue, and the ultra-short tip-to-grip (under 1.9"/48 mm) ensures precise operator dexterity under a magnifying glass or microscope. The Blue Series tip heater cartridges integrate a high-precision sensor with a robust heater that delivers up to 120 watts of power in a cost-effective tip cartridge. Choose any temperature (from 380°F/193°C to 850°F/454°C) without changing cartridges - one tip, any temperature. The quick-change cartridges can be quickly replaced when hot and reach the set temperatures within 5-10 seconds.

Technical data:

Resistance soldering tip to ground:	2Ohm or less
Temperature stability:	meets or exceeds the requirements
	from ANSI/J-STD-001
Soldering tip temperature:	+193 to +454°C

The TD-200 soldering iron is compatible with the ADS200 soldering station.
Tips and holders are sold separately.

Manufacturer: Pace

Documents

• Manual
