Flex-G

To the inquiry list

made of aluminium alloy or cast aluminium

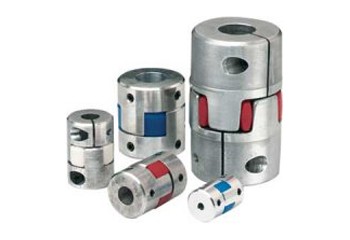

The Flex-G are claw couplings and use the flexibility and elasticity of a polyurethane element between aluminium hubs. This combination allows high torques to be transmitted with little or no backlash, even with angular and/or parallel misalignment.

Features:

• Play-free / play-arm
• Choice of 3 polyurethane elements
• Pluggable coupling assembly
• Noise reduction effect

Technical data:

Rotation per min:	up to 40'000
Adjustment compensation:	radial and angular
Power transmission:	max. 133 Nm
Bore sizes:	3 to 16mm
Electrically insulating:	yes
Fixation:	Clamp or screw mounting
Operating temperature:	-40 to +80°C

The couplings are available on request and can be found in the data sheets.

Manufacturer: Huco
