OP100 series

To the inquiry list

Snap cable bushings open at the side made of PA66

These snap cable with membrane are made in PA66 and are certificated UL/CSA, Thanks to the flexible segments they can be used to fixing tubes of any shape and diameters. They working very easily with a snap-fit engagement and offer stability and also electrical and mechanical protection to cables and tubes, absorbing at the same time vibrations and shocks.

Technical data:

Material:	Polyamide (PA66)
Colour:	black
Flammability:	V2 (UL 94)
Temperature range:	-40 to +110°C

RoHS compliant

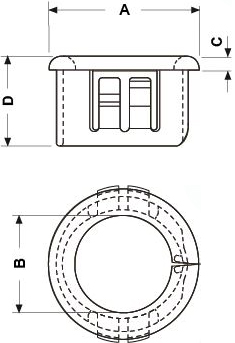

Legend:

A, B, C, D:

Dimensions (mm)

Documents

• Datasheet
