RD106 series

To the inquiry list

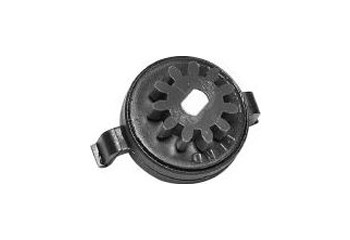

Rotary damper

Features:

• Rotary damper with pinion, module 0,8 with 11 teeth and 4,5mm height
• Clipmontage (backside)
• Housing ultrasonically welded
• RoHS compliant

Technical data:

Material:	pinion and rotor: POM
	base: PA66 GF13
	mug: PA66
	O-Ring: Silicone
	liquid: Silicone oil
Colour:	black
Torques:	according to 20 U/min. @20°C (see table)
Lifetime:	100'000 cycles (1 cycle = 1x forward 150mm, 1x backwards
	150mm without break @200 U/min.)
Operating temperature:	-40 to +90°C

Other torques, colours and versions with freewheel available on request..
