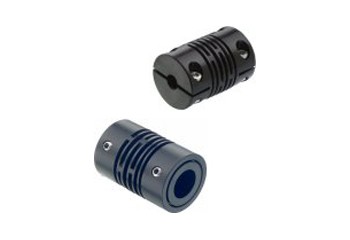

Step-Beam

To the inquiry list

made of nylon

Features:

• Torsionally stiff construction
• Free of play
• No moving parts
• Simple single-beam coupling, compatible with standard industry types
• Very low priced
• For higher torques we recommend the steel coupling

Technical data:

Rotation per min:	up to 10'000
Adjustment Compensation:	axial, radial and angular
Power transmission:	25 Nm
Bore sizes:	3 to 12.7mm
Operating temperature:	-20 to +150°C
Electrically insulating:	yes
Fixation:	clamp or screw mounting

The couplings are available on request and can be found in the data sheets.

Manufacturer: Huco
