TKS series

To the inquiry list

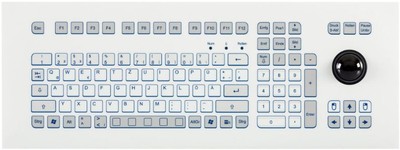

Aluminium foil keyboard, 105 keys, integrated trackball

Features:

• easy installation thanks to threaded bolts on the rear
• excellent tactile switching feel
• key position detection through relief printing
• resistant foil surface
• dust and splash-proof to IP65
• Front panel alternatively with foil edge protection
• integrated 38mm trackball

Technical data:

Design:	built-in keyboard
Number of keys:	105
Key stroke:	0.3mm
Actuating force:	2.6N
USB-Type:	USB-A, V1.1
Cable length:	2000mm
Cable colour:	grey
Front material:	aluminium with decor foil
Enclosure material:	sheet steel
Keyboard colour:	white and grey
Dimensions:	483 x 178 x 61.6mm
Weight:	1518g
IP-class:	IP65 (stat.) / IP54 (dyn.)
Storage temperature:	-25 to +80°C
Operating temperature:	0 to +70°C
RoHS, REACH, EMV and CE compliant

Non-listed layouts or colour versions are available on request.

Manufacturer: Gett
