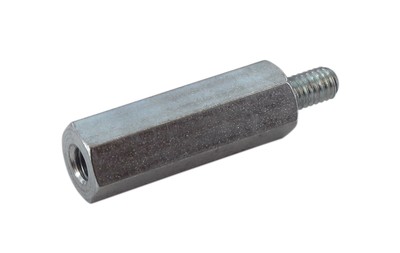

DISTINEX Stahl
Distanzhalter mit Innen- und AussengewindeTechnische Angaben:
| Material: | Stahl (5SMnPb36k) |
| Gewindegrössen: | M2.5, M3, M4, M5, M6, M8 (D1 + D2) |
| Schlüsselweiten: | 5, 5.5, 7, 8, 9, 10, 13 (SW) |
| Längentoleranz: | gem. ISO 2768-1M (mittel) |
| RoHS konform: | gem. 2011/65/EU Anhang III, Ausnahmeregelung 6a |
Legende:
| D1, D2: | Gewinde |
| L, P1, P2, SW: | Massangaben (mm) |
Auf Anfrage Fertigung nach Spezifikation:
Spezialausführungen in anderen Dimensionen und weiteren Materialien sind auf Anfrage über unser Konfigurationsformular erhältlich.
Dokumente
Preis in CHF exkl. Mwst.
| Artikel | Gewinde | SW | L | P1 | P2 | Anzahl | Verfügbar | Einzelpreis | Anfrage |
|---|---|---|---|---|---|---|---|---|---|
| DISTINEX2550S-08 | M2.5 | 5.0 | 8.0 | 8.0 | 4.0 |
|
k.A. | ||
| DISTINEX2550S-10 | M2.5 | 5.0 | 10.0 | 10.0 | 6.0 |
|
k.A. | ||
| DISTINEX3050S-05 | M3 | 5.0 | 5.0 | 8.0 | 3.0 |
|
0.19 | ||
| DISTINEX3050S-06 | M3 | 5.0 | 6.0 | 8.0 | 3.0 |
|
0.25 | ||
| DISTINEX3050S-07 | M3 | 5.0 | 7.0 | 8.0 | 3.0 |
|
0.25 | ||
| DISTINEX3050S-08 | M3 | 5.0 | 8.0 | 8.0 | 4.0 |
|
0.25 | ||
| DISTINEX3050S-10 | M3 | 5.0 | 10.0 | 8.0 | 6.0 |
|
0.27 | ||
| DISTINEX3050S-11 | M3 | 5.0 | 11.0 | 8.0 | 6.0 |
|
0.28 | ||
| DISTINEX3050S-12 | M3 | 5.0 | 12.0 | 8.0 | 8.0 |
|
0.28 | ||
| DISTINEX3050S-13 | M3 | 5.0 | 13.0 | 8.0 | 8.0 |
|
0.29 | ||
| DISTINEX3050S-14 | M3 | 5.0 | 14.0 | 8.0 | 8.0 |
|
0.29 | ||
| DISTINEX3050S-15 | M3 | 5.0 | 15.0 | 8.0 | 8.0 |
|
0.29 | ||
| DISTINEX3050S-18 | M3 | 5.0 | 18.0 | 8.0 | 8.0 |
|
0.30 | ||
| DISTINEX3050S-20 | M3 | 5.0 | 20.0 | 8.0 | 8.0 |
|
0.31 | ||
| DISTINEX3050S-25 | M3 | 5.0 | 25.0 | 10.0 | 10.0 |
|
0.36 | ||
| DISTINEX3050S-30 | M3 | 5.0 | 30.0 | 10.0 | 10.0 |
|
0.38 | ||
| DISTINEX3050S-35 | M3 | 5.0 | 35.0 | 10.0 | 10.0 |
|
0.40 | ||
| DISTINEX3050S-40 | M3 | 5.0 | 40.0 | 10.0 | 10.0 |
|
0.65 | ||
| DISTINEX3050S-45 | M3 | 5.0 | 45.0 | 10.0 | 10.0 |
|
0.71 | ||
| DISTINEX3050S-50 | M3 | 5.0 | 50.0 | 10.0 | 10.0 |
|
0.77 |
