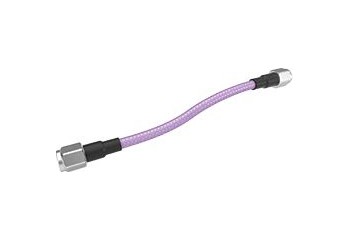

RF280 series
RF Microwave Cable AssemblyFeatures:
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- Velocity of Propagation: 83%
- Capacitance: 82 pF/meter
- Time Delay: 4.0 ns/meter
- VSWR: max. 1.35:1, max. 1.45:1 (Right-Angle Plug)
- Insertion Loss: See diagramm
- Power Handling: See diagramm
- Bend Radius: min. 38.1mm
- Operating Temp: -65 to +125°C
- Cable type: 0.277 (11 AWG) low-loss flexible, microwave cable
- Cable connector options: SMA, TNCA or N Type
