0805 Series

To the inquiry list

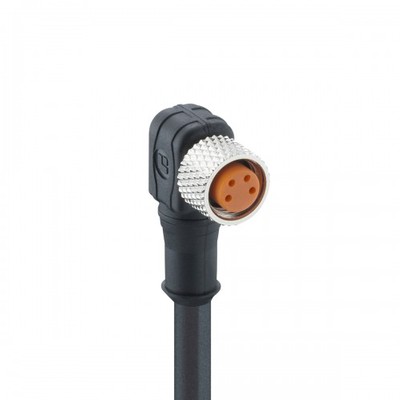

M8 one-sided, screw closure, IP67

Features:
Connection type:screw closure
Cable end 1:M8, angled, A-coded, female
Cable end 2:open end
Cable material:PVC or PUR
Cable colour:black
IP protection class:IP67
Technical data:
Dielectric strength:to 10mOhm
Rated current:4A
Rated voltage:50V AC or 60V DC
Rated impulse voltage:1.5kV
Insertion / extraction force: max. 23 N
Lifetime:min. 100 cycles
Operating temperature:-25 to +80°C

For additional technical data, please refer to the data sheet.
Other lengths, deviating numbers of poles as well as different cable end piece options are available on request.

Manufacturer: Lutronic

Documents

Poles
Material
Length
close
Price in CHF excl. vat.
Part Poles Material Length Quantity Available Price Enquiry
0805.04.002.0200 4 PVC 2.0m
5.82
0805.04.002.0500 4 PVC 5.0m
8.40
0805.04.002.1000 4 PVC 10.0m
10.15
