1457 EMI/RFI series

To the inquiry list

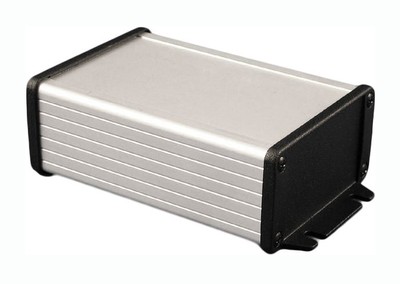

Aluminium enclosure with aluminium front panels, with EMI- shield and flange, IP54

For applications needing EMC capability, the 1457-EMI range is available in in 15 sizes from 80 x 59 x 3mm to 280 x 191 x 68mm with a clear anodised or black satin powder coat finish. The end panels are die-cast aluminium, finished in black satin powder coat on the external faces. They are available with or without a flange for mounting the enclosure to a surface. A full perimeter conductive foam/fabric Ni/Cu (nickel/copper) gasket and CPSA (conductive pressure sensitive adhesive) ensure electrical continuity through the enclosure.

Key features:

• Tough watertight extruded enclosures designed to house PCB or for equipment interfacing
• Sized for standard Eurocards
• PCB mount horizontally by sliding into internal slots extruded into the enclosure body
• Rugged body constructed from one piece of extruded aluminum with a minimum thickness of 0.06¿ (1.5 mm)
• Designed to meet IP54
• Extruded aluminum body includes a recessed area for labels or membrane keypad
• End panels are rugged yet easy to machine diecast aluminum with full perimeter conductive foam/fabric gaskets made of Ni/Cu (nickel/copper) and CPSA (conductive pressure sensitive adhesive)
• Choice of enclosure with flat end panels or enclosure with flanged end panels

Includes:

• 2 diecast aluminum end panels painted in a durable, black satin powder paint
• Extruded aluminum body in choice of clear anodized or black powder coat finish
• 2 adhesive conductive end plate gaskets
• Stainless steel assembly hardware with rubber o-ring and adhesive rubber feet
• Thread forming screws provided are black zinc plated for corrosion protection to ASTM B633-13: to Type II rating (96 hour Salt Spray Test) and SC3 severe rating (12 micron thickness coating)

Manufacturer: Hammond
