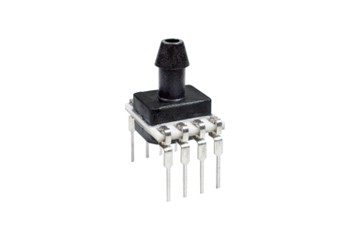

TruStability® HSC series

To the inquiry list

±1,6 mbar to ±10 bar, compensated and reinforced

Honeywell's HSC series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and non-linearity using an application specific integrated circuit (ASIC). The calibrated output values for the pressure are updated with approx. 1 kHz for analogue and 2 kHz for digital values.

Features:

• Small housing size
• Extremely low power consumption
• Connection and housing options simplify integration

Technical data:

Pressure area:	±1.6 mbar to ±10 bar
	±160 Pa to ±1 MPa
	±0.5 H2O to ±150 psi
Measurement type:	Absolute, differential or relative pressure
Signal processing:	amplified
Output:	Analogue (VDC) or digital (I2C or SPI)
Operating temp. calibrated:	0 to +50°C (+32 to +122°F)
Total error tolerance:	±1%FSS
Accuracy:	±0,25%FSS BFSL
Placement:	DIP, SIP or SMT

Manufacturer: Honeywell
