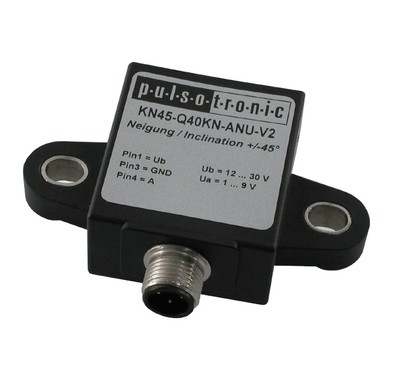

KN Series

To the inquiry list

1 axle: up to 5, 15, 30, 45, 60, 75, and 90°

Inclination sensors determine the absolute deviation from a horizontal plane. In addition to analogue inclination sensors, this product group includes the latest generation with CAN Open connection, digital AC switching outputs for direct control of hydraulic valves or two-axis design.

The sensor is available in two versions; with analogue voltage or current output.

Functions:

• Acceleration and vibration measurement
• Active vibration damping
• Transport monitoring

Applications:

• Agricultural machines
• Wind turbines
• Container

Technical data analogue voltage:

Number of inclination axes:	1
Operating voltage:	12 to 30V DC
Output:	0 to 10V
	5V @0° (@Ub=24V)
	0V @-90° (@Ub=24V)
	10V @+90° (@Ub=24V)
Operating current:	to max. 15mA
Repeat accuracy:	5%
Operating temperature:	-40 to +85°C

Technical data analogue current:

Number of inclination axes:	1
Operating voltage:	12 to 30V DC
Output current:	4 to 20mA
	12mA @0° (@Ub=24V)
	4mA @-90° (@Ub=24V)
	20mA @+90 (@Ub=24V)
Operating current:	to max. 35mA
Repeat accuracy:	5%
Operating temperature:	-40 to +85°C

Manufacturer: Pulsotronic
