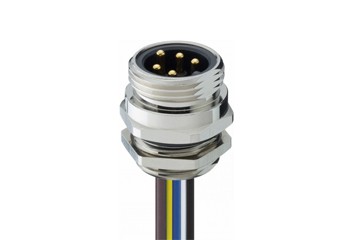

7830 Series

To the inquiry list

7/8", front side PG13.5, A-coded, IP67

Features:

Connection type:	7/8", A-coded, male
Mounting:	screw closure PG13.5 (fontseitig)
Connection:	with strands
IP class:	IP67
Materials:
Contact carrier:	TPU
Contact pins:	CuZn, nickel and gold plated
Enclosure & nut:	CuZn, nickel plated
Gasket:	FKM
Technical data:
Dielectric strength:	to 5mOhm
Rated current:	(see data sheet)
Rated voltage:	250V
Rated impulse voltage:	(see data sheet)
Operating temperature:	-25 to +80°C
Lifetime:	min. 100 cycles

Manufacturer: Lutronic

Documents

• Datasheet
