ADM6 series

auf Anfrageliste

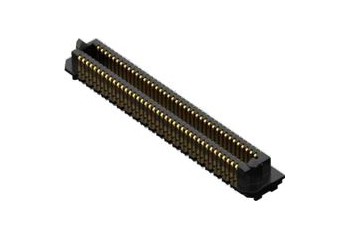

AcceleRate® HD High-Density 4-Row Terminal

The ADM6 series is a low profile, ultra-slim surface mount header. Delivering 56 Gbps PAM4 performance, the ADM6 is compatible with the UMPT and UMPS series to provide flexible, two-piece power/signal solutions.

Features:

• 0.635mm (0.025") pitch
• Incredibly dense with up to 240 total I/Os; up to 400 I/Os in development
• Low profile 5mm stack height and slim 5mm width
• 4-row design; 10 - 60 positions per row (40 - 240 total positions)
• Edge Rate® contact system optimized for signal integrity performance
• Supports 56 Gbps PAM4 (28 Gbps NRZ) applications
• Solder ball technology for simplified processing and self aligning
• Additional stack heights in development

Manufacturer: Samtec
