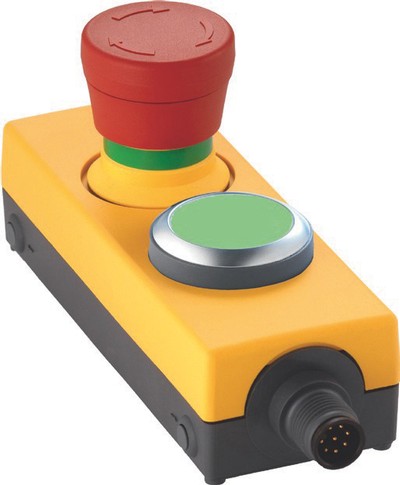

E-Box M12

To the inquiry list

with emergency stop and Pushbutton

Only a selection of possible combinations are listed in the table. Others are available on request.

Dimensions:

Measures:	123.2 x 40mm, height depending on actuator
Mechanical construction:
Fixation:	with clip in 40mm aluminum profile rail
Connection:	M12
Electrical parameters:
Operating voltage:	min. 5V AC/DC
	max. 35V AC/DC
Operating current:	min. 1mA
	max. 100mA
Switching capacity:	max. 250mW
Other information:
IP protection class:	IP65 according to EN 60529
Protection class:	II
Lifetime / B10 value:	depending on the actuator
Operating temperature:	-25 to +70°C

RoHS & REACH compliant

Manufacturer: RAFI
