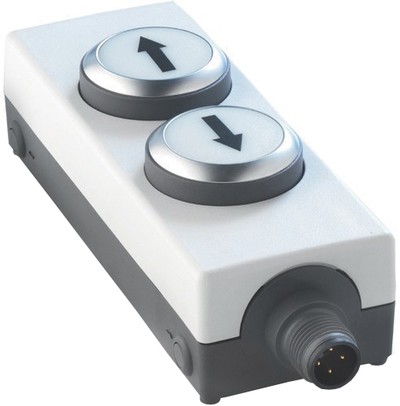

E-Box M12

To the inquiry list

with 2 Pushbuttons, FLEXLAB

The pushbuttons with FLEXLAB offer the option of individually labelling control devices. A4 labelling sheets with pre-punched labels can be printed using standard office laser printers. After printing, the label inserts can be removed from the sheet and inserted into the colour cover using the fine locking tabs.

Only a selection of possible combinations are listed in the table. Others are available on request.

Dimensions: Measures:123.2 x 40mm, height depending on actuator    Mechanical construction:   Fixation:with clip in 40mm aluminum profile rail Connection:M12    Electrical parameters:  Operating voltage:min. 5V AC/DC  max. 35V AC/DC Operating current:min. 1mA  max. 100mA Switching capacity:max. 250mW    Other information:  IP protection class:IP65 according to EN 60529 Protection class:II Lifetime / B10 value:depending on the actuator Operating temperature: -25 to +70°C RoHS & REACH compliant

Manufacturer: RAFI
