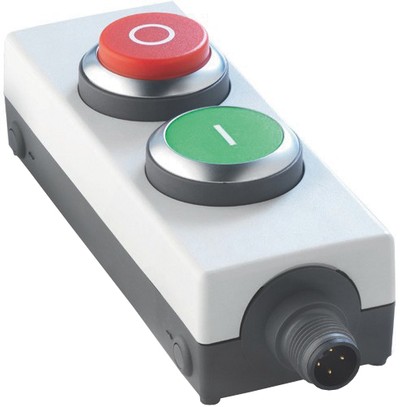

E-Box M12
with 2 Pushbuttons (flat/protruding)Only a selection of possible combinations are listed in the table. Others are available on request.
Dimensions:
| Measures: | 123.2 x 40mm, height depending on actuator |
| Mechanical construction: | |
| Fixation: | with clip in 40mm aluminum profile rail |
| Connection: | M12 |
| Electrical parameters: | |
| Operating voltage: | min. 5V AC/DC |
| max. 35V AC/DC | |
| Operating current: | min. 1mA |
| max. 100mA | |
| Switching capacity: | max. 250mW |
| Other information: | |
| IP protection class: | IP65 according to EN 60529 |
| Protection class: | II |
| Lifetime / B10 value: | depending on the actuator |
| Operating temperature: | -25 to +70°C |
Manufacturer: RAFI
