FTR series

To the inquiry list

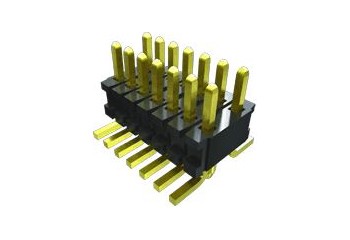

Surface Mount Micro Header

The FTR is a surface mount PCB header strip. It uses a pitch of 1.27mm (0.050") between contacts and 2.54mm (0.100") between rows to offer greater flexibility for the PCB designer. The FTR is available in multiple lead styles.

Features:

• Pitch: 1.27mm (0.050")
• Contact System: 0.46mm (0.018") square post
• Orientation: Vertical
• Termination: Surface mount
• Application: Optional polarization for single or double row design up to 80 pins
• Special Features: Locking clip option available for most rugged requirements

Manufacturer: Samtec

Documents

• Catalogue page
