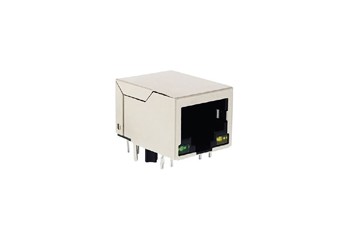

G15LX

To the inquiry list

THT, 2.5GHz magnetics and LED

RJ45 Ethernet sockets, right-angled

Features:

• Built-in 2.5 GHz magnets
• Small footprint
• LEDs for status displays (green or yellow)
• THT mounting
• RoHS compliant

Technical data: >

Enclosure material:	PBT thermoplastic, UL 94V-0, black
Shielding material:	brass nickel plated
Contact material:	phosphor bronze
Coatings:	contact area gold plated and solder area tin plated
Lifetime:	min. 750 cycles
Operating temperature:	-40 to +85°C
Electrical parameters:
Contact resistance:	max. 20mOhm
Insulation resistance:	min. 500MOhm
Dielectric strength:	2'250V AC per min.

Please refer to the data sheet for further details.

Manufacturer: Kycon

Documents

• Datasheet
