GSP1X

To the inquiry list

THT, combi, gigabit magnetics and LEDs

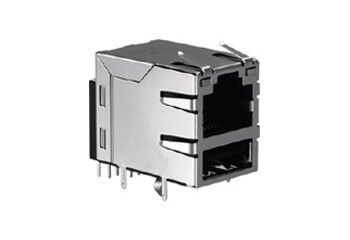

RJ45 Ethernet via USB socket, right-angled.

Features:

• RJ45 over USB connection to reduce the footprint
• Magnets to support 1000 Base-T applications
• LEDs for status indication
• Fully shielded for EMI suppression
• THT mounting
• RoHS compliant

Technical data: >

Enclosure material:	PBT thermoplastic, UL 94V-0, black
Shielding material:	C2680, nickel plated
Contact material:	phosphor bronze
Coatings:	contact surface gold plated
Insertion force:	max. 30 N
Lifetime:	min. 750 cycles
Operating temperature:	-40 to +85°C
Electrical parameters:
Rated current:	1.5A
Rated voltage:	125V DC
Contact resistance:	max. 20mOhm
Insulation resistance:	min. 500MOhm
Dielectric strength:	500V AC per min.

Please refer to the data sheet for further details.

Manufacturer: Kycon
