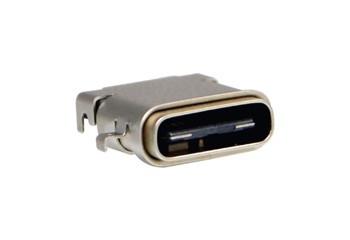

KUSB67X-MM

To the inquiry list

USB 3.2, gen. 2, C-type, 10Gbit/s, IP67

Features:

• UBS 3.2, Gen. 2, C-type
• 10Gbit/s
• Angled version
• Hybrid SMT or THT mounting
• Middle bracket for reduced height
• IP67 rated
• Tape & Reel
• RoHS compliant

Technical data:

Enclosure material:	high temperature thermoplast, UL94V-0, black
Shielding material:	stainless steel, nickel plated
Contact material:	copper alloy
Coatings:	contact surface gold plated, solder tags tin plated and nickel plated bottom plate
Insertion force:	5 to 20 N
Extraction force:	8 to 20 N
Lifetime:	min. 10'000 cycles
Operating temperature:	-40 to +80°C
Electrical parameters:
Rated current:	(see data sheet)
Rated voltage:	30V
Contact resistance:	max. 40mOhm
Insulation resistance:	min. 100MOhm bei 100V DC
Dielectric strength:	100V AC (RMS) per min.

Please refer to the data sheet for further details.

Manufacturer: Kycon

Documents

• Datasheet
