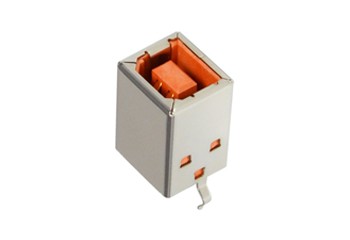

KUSBVXHT

To the inquiry list

USB, B-type

Features:

• UBS, B-type
• Vertical version
• High retention force
• Supportet "Hot-Plugging"
• THT mounting
• RoHS compliant

Technical data: >

Insulator material:	high temperature thermoplast, orange
Enclosure material:	stainless steel, nickel plated
Contact material:	phosphor bronze
Coatings:	(see data sheet)
Insertion force:	max. 35 N
Extraction force:	min. 15 N
Lifetime:	min. 1'500 cycles
Operating temperature:	-55 to +85°C
Electrical parameters:
Rated current:	1.5A
Rated voltage:	30V DC
Contact resistance:	max. 30mOhm
Insulation resistance:	min. 1'000MOhm
Dielectric strength:	500V AC per min.

Please refer to the data sheet for further details.

Manufacturer: Kycon

Documents

• Datasheet
