Mini-Con-X

To the inquiry list

15.5mm, 6 or 8 poles, up to IP68

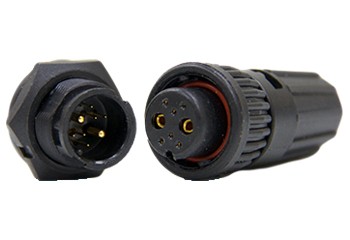

Compact round plug, available as coupling, appliance or cable plug up to IP67.

Features:

• Combines signal and power in one connector/li>
• Fits the dimensions of the previous Mini-Con-X connectors
• IP protection class up to IP67
• RoHS compliant

Technical data:

Closure:	bayonet
Lifetime:	min. 300 cycles
Material:	thermoplastic (enclosure)
	copper alloy gold plated (contacts)
Colour:	black
Operating temperature:	-40 to +85°C
Electrical data:
Voltage:	125V (RMS) (6 contacts)
	250V (RMS) (8 contacts)
Rated current:	max. 10A for 16 contacts
Insulation resistance:	min. 1'000MOhm
Contact resistance:	typ. 10mOhm

Manufacturer: Switchcraft-Conxall
