RAFIX 16

To the inquiry list

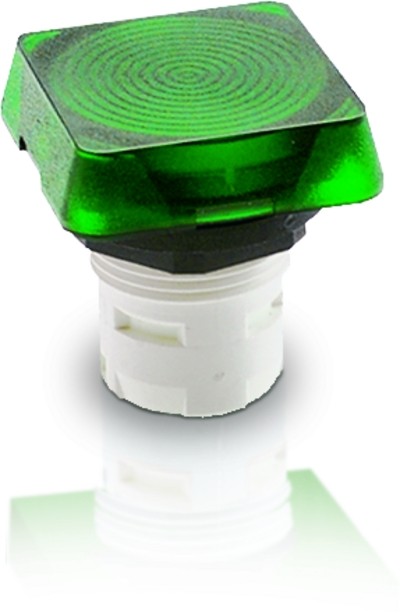

Luminous attachment, square

Features:

• Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
• IP65 (DIN EN 60529) frontside
• RoHS & REACH compliant

Dimensions:

Mounting depth:	30.5 or 44.7mm
Mounting hole:	16.2mm
Button grid:	25 x 25mm
Mechanical construction:
Fixation:	thread ring
Lighting:	yes
Mechanical parameters:
Impact strength:	max. 100 N
Other information:
Operating temperature:	-25 to +70°C
Operating temperature with LED:	max. +55°C
Storage temperature:	-40 to +85°C

Manufacturer: RAFI
