RAFIX 16

To the inquiry list

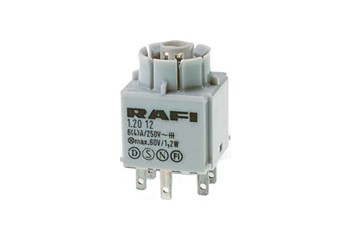

Switching element standard, gold contacts, plug-in connection

Features:

• Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
• Shock resistance according to IEC 60068-2-27
• Vibration resistance according to IEC 60068-2-6
• IP65 (DIN EN 60529) frontside
• Fire protection class according to UL 94
• RoHS & REACH compliant

Mechanical construction:

Fixation:	latching onto actuator
Contact system:	self-cleaning bridge contact
Contact material:	gold
Connection labelling:	according to DIN 50013
Mechanical parameters:
Impact strength:	max. 100 N
Actuating travel:	3mm
Robustness:	according to IEC 60947-5-5
Electrical parameters:
Switching voltage:	min. 0.02V DC
	max. 35V AC/DC
Switching current:	min. 0.001A
	max. 0.25A
Dielectric strength:	max. 50mOhm
Other information:
Operating temperature:	-25 to +70°C
Operating temperature with LED:	max. +55°C
Storage temperature:	-40 to +85°C

Manufacturer: RAFI
