RAFIX 16 F

To the inquiry list

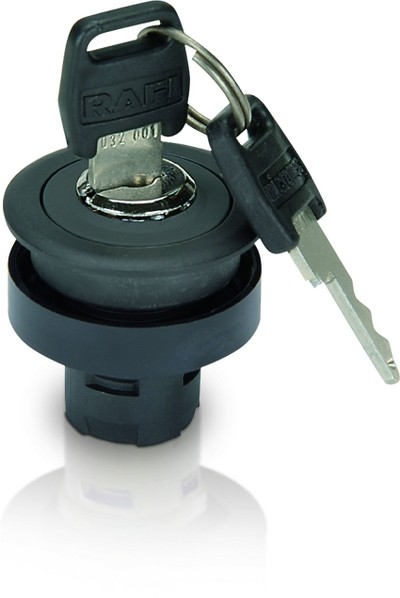

Key switch, round, MICROMEC

Features:

• Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
• IP65 (DIN EN 60529) frontside
• RoHS & REACH compliant

Technical data:

Aperture shape:	flat
Aperture colour:	opaque black
Dimensions:
Overall height:	24.1mm
Mounting depth:	50mm
Mechanical construction:
Fixation:	thread ring
Contact function:	depending on the switching element
Contact material:	depending on the switching element
Lighting:	no
Lock:	Micromec
Guard locking:	5
Closing:	001
Number of closings:	500
Master key:	on request
Mechanical parameters:
Actuating moment:	max. 1.3 Nm
Electrical parameters:
Protection class:	II
Other information:
ESD strength:	15kV (Lock)
High-voltage strength:	4kV (Key)
Operating temperature:	-25 to +70°C
Storage temperature:	-40 to +85°C

Manufacturer: RAFI
