RAFIX 22 QR

To the inquiry list

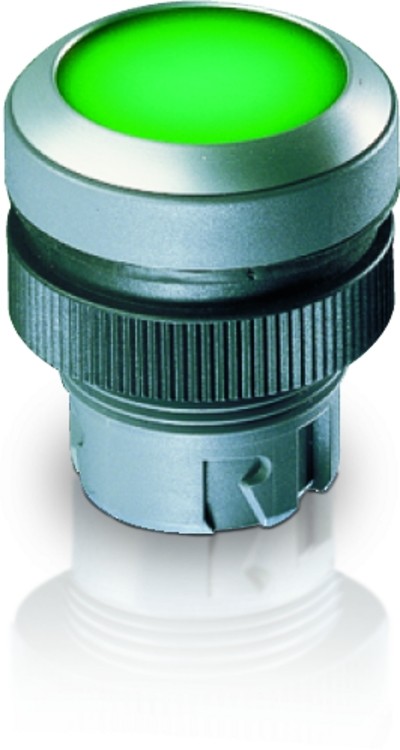

Pushbutton, round, flat cover

Features:

• Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
• IP65 (DIN EN 60529) frontside
• RoHS & REACH compliant

Dimensions:

Mounting depth:	56.4mm
Mounting hole:	22.3mm
Button grid:	50 x 30mm
Mechanical construction:
Fixation:	thread ring
Contact function:	depending on the switching element
Contact material:	depending on the switching element
Mechanical parameters:
Actuating travel:	4mm
Actuating force:	max. ca. 5 N per switching element
Impact strength:	max. 100 N
Other information:
Operating temperature:	-25 to +70°C
Storage temperature:	-40 to +85°C

Manufacturer: RAFI
