RAFIX 30 FS+

To the inquiry list

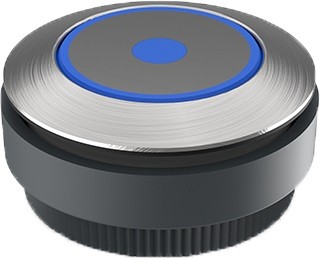

Pushbutton with spot and ring illumination

Pushbutton with stainless steel ring, point and ring illumination. By using a short-stroke adapter in the pushbutton together with the "MICON 5" short-stroke pushbutton as a contact element, several light functions can be displayed and indicated by LEDs using the minimum installation space on the PCB.

You will find the corresponding switching elements further down on this page.

Features:

• Collar shape round
• Front ring made of stainless steel
• Illumination with SMT LED
• Function momentary
• Special tactile feedback
• Ideal for operation with gloves
• Protection class IP65 (front)
• RoHS & REACH compliant

Dimensions:

Collar measure:	34,5mm
Overall height:	3,5mm
Mounting hole:	30,3mm
Button grid:	35 x 35mm

Manufacturer: RAFI



Documents

• Overview RAFIX 30 FS+ (DE)
• Programme addition (DE)
