RAFIX 30 FS+

To the inquiry list

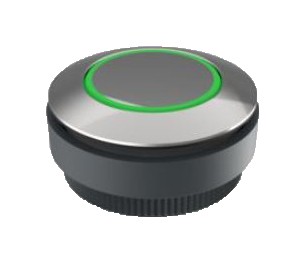

Pushbutton with ring illumination

Pushbutton with stainless steel insert and ring illumination. Using short-stroke adapter in the pushbutton together with short-stroke pushbutton "MICON 5" as contact element, several light functions can be displayed and indicated by LEDs via the minimal installation space on the PCB.

You will find the corresponding switching elements further down on this page.

Features:

• Collar shape round
• Front ring made of stainless steel
• Illumination with SMT LED
• Function momentary
• Special tactile feedback
• Ideal for operation with gloves
• Protection class IP65 (front)
• RoHS & REACH compliant

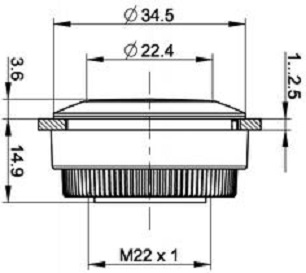

Dimensions:

Collar measure:	34,5mm
Overall height:	3,5mm
Mounting hole:	30,3mm
Button grid:	35 x 35mm

Manufacturer: RAFI



Documents

• Übersicht RAFIX 30 FS+
• Overview RAFIX 30 FS+ (DE)
• Programme addition (DE)
• more
