RAMO 22 S (M12)

auf Anfrageliste

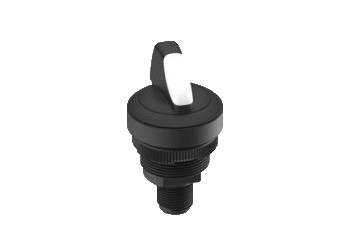

Selector switch, frontring silver metallic or black

The RAMO S selector switches offer a solution for every application thanks to various contact functions, rotation angles, actuation functions and illuminated panels.

Features:

• Selector switch with latching or momentary actuator
• Based on the proven RAFI short-travel keyswitch MICON 5 with gold contacts
• One-piece housing, sealed from all sides
• Simple plug & play connection

Mechanical construction:

Operating function:	latching or momentary
Contact equipment:	1 or 2 closer
Contact material:	gold
Electrical parameters:
Switching voltage:	min. 1V DC
	max. 32V DC
Switching current	max. 100mA
Power loss:	0.001W
Other information:
Environmental resistance:	IEC 60068-2, -14, -30, -78
Lifetime:	200'000 cycles
Operating temperature:	-40 to +85°C

Manufacturer: RAFI


Further technical details can be found in the product brochure.

Dokumente

• Product brochure
