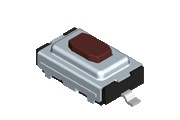

T(M)(J)G-325 series

To the inquiry list

SMT, 2.8 x 3.8mm

Features:

• 2.5mm overall height
• Suitable for high placement density
• With anti-ESD on the groundling connection
• RoHS compliant

Technical data:

Contact rating:	12V DC, 50mA
Contact resistance:	max. 100mOhm
Insulation resistance:	min. 100MOhm @500V DC
Dielectric strength:	300V AC per min.
Actuating force:	160 ±50 or 260 ±50gf
Lifetime:	20'000 cycles @260gf
	50'000 cycles @160gf
Operating temperature:	-25 to +70°C

Manufacturer: Diptronics

Documents

• Datasheet
