HSEC8-DP series

To the inquiry list

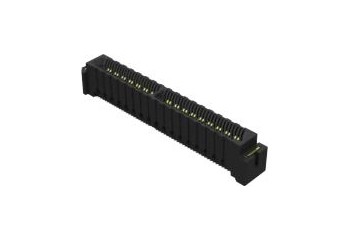

High-Speed Differential Pair vertical Edge Card Connector

The HSEC8-DP is a vertical mount 0.80mm pitch edge card connector with differential pairs. Featuring Samtec's Edge Rate® contact system, this series is designed for applications requiring high-mating cycles and 28 Gbps performance. The HSEC8-DP is usable with a 1.60mm (.062") card.

Features:

• 0.80mm (0.0315") pitch
• Up to 56 differential pairs
• Performance to 20 GHz / 40 Gbps
• Accepts 1.60mm (0.062") thick cards
• Optional weld tab

Manufacturer: Samtec

Documents

• Catalogue pages
