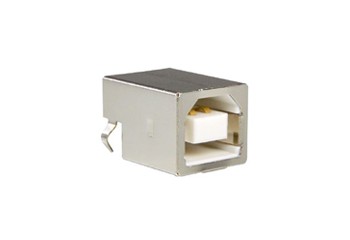

KUSBLPX

To the inquiry list

USB 2.0, B-type

Features:

• UBS 2.0, B-type
• Angled version
• Middle bracket for reduced height
• Supports "Hot-Plugging"
• RoHS compliant

Technical data:

Insulator material:	PBT thermoplastic, UL 94V-0 Rated, black or white
Contact material:	phosphor bronze
Coatings:	nickel plated and gold plated,
	connection ends nickel plated and tin plated
Operating temperature:	-40 to +85°C
Electrical parameters:
Rated current:	1.5A
Rated voltage:	30V AC
Contact resistance:	max. 30mOhm
Insulation resistance:	min. 1000MOhm
Dielectric strength:	750V AC per min.

Please refer to the data sheet for further details.

Manufacturer: Kycon

Documents

• Datasheet
