KUSBVX

To the inquiry list

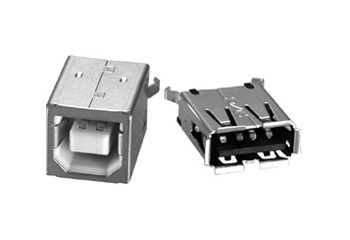

USB 2.0, A- & B-type

USB A-type in singleand double THT versions, as well as USB B-typee. Supports hot plugging.

Features:

• USB A- and B-typee
• According to 2.0 specifications
• THT connections
• Loosely packed
• Vertical version
• PBT thermoplastic UL94V-0, black or white
• Copper contacts, contact area gold over nickel
• CSA/NRTL No. LR78160
• UL File No. 134345
• CE & RoHS compliant

Technical data:

Rated current:	1A
Rated voltage:	30V AC
Contact material:	gilded
	30µ gold plated
Contact resistance:	max. 30mOhm
Dielectric strength:	500V AC for 1 min.
Insulation resistance:	min. 1'000 MOhm
Insertion force:	max. 3.57kg
Extraction force:	min. 1.02kg
Lifetime:	min. 1'500 cycles

Manufacturer: Kycon

Further articles in other versions can be seen in the data sheet and are available on request.
