RAFIX 16

To the inquiry list

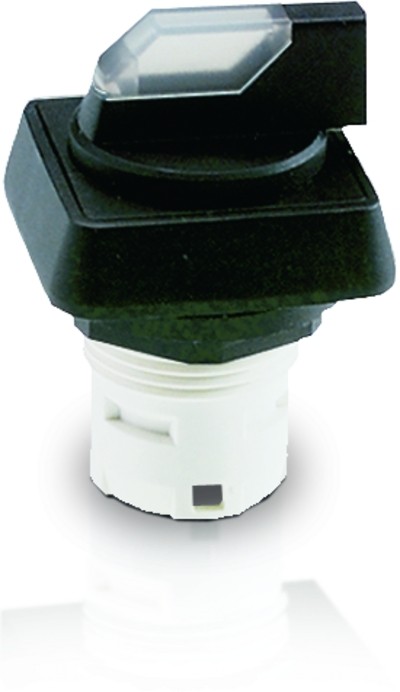

Selector switch, square

Features:

• Environmentally resistant according IEC 60068-2, -14, -30, -33 and -78
• IP65 (DIN EN 60529) frontside
• RoHS & REACH compliant

Dimensions:

Overall height:	17.1mm
Mounting depth:	44.7mm
Mounting hole:	16.2mm
Button grid:	25 x 25mm
Mechanical construction:
Fixation:	thread ring
Contact function:	depending on the switching element
Contact material:	depending on the switching element
Mechanical parameters:
Actuating moment:	max. 1.3 Nm
Other information:
Operating temperature:	-25 to +70°C
Operating temperature with LED:	max. +55°C
Storage temperature:	-40 to +85°C

Manufacturer: RAFI

Documents

• Datasheet
