HCSD series

To the inquiry list

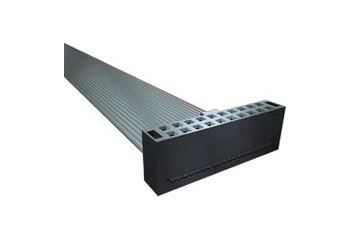

IDC cable assembly

The HCSD series is a range of classic pre-terminated IDC cable assemblies. Featuring double row socket connectors, the HCSD series is available in custom lengths from 2" and can be supplied in single- or double-ended variations.

Features:

• 2.54mm (0.100") pitch
• Most common pin counts from 10 to 40
• Dual beam contacts mate with 0.635mm (0.025") square posts
• Wide variety of wiring options including reverses, daisy chains, etc.
• Gray and color coded cable
• Mating shrouded terminal strips and ejector headers
• Polarization key

Manufacturer: Samtec

Documents

• Catalogue pages
